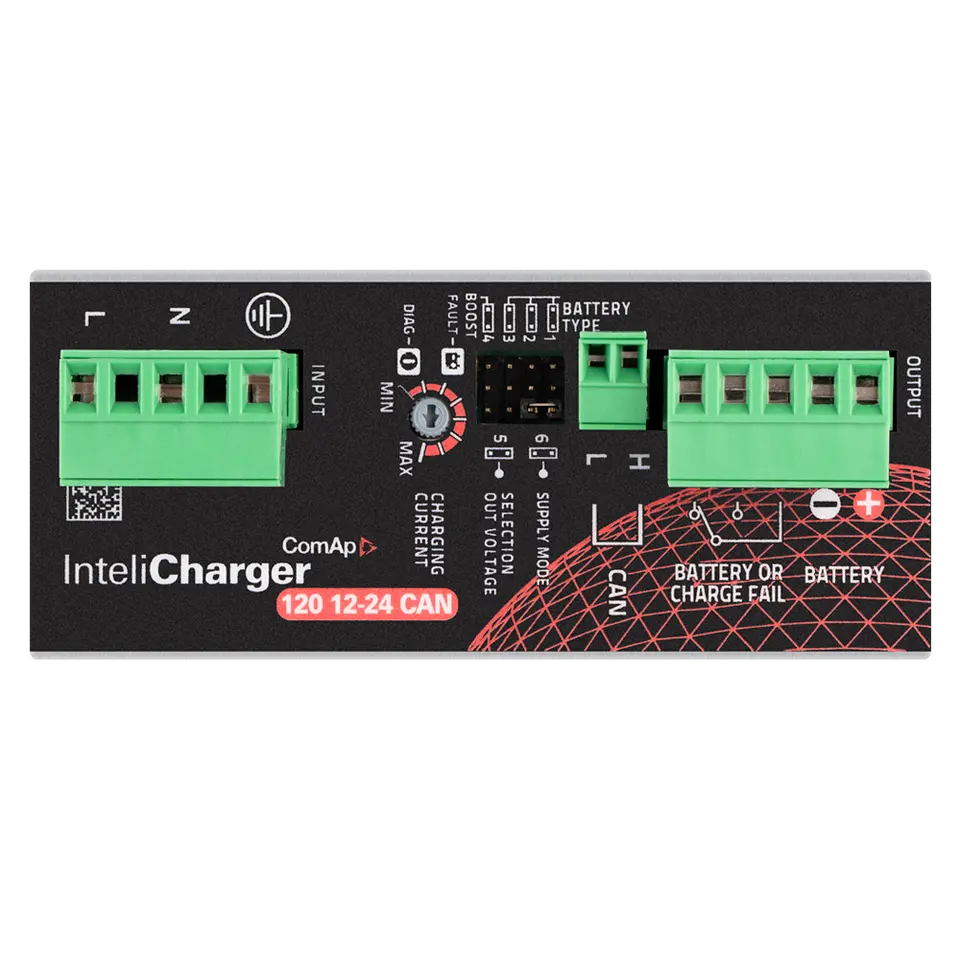

InteliCharger 120 12-24 CAN

Order code: BC1CAN5ABOB

Advanced dual voltage battery charger 12V/6A or 24V/5A with charging fail relay and CAN J1939 communication / diagnostic

The InteliCharger 120 12-24 is an advanced, automatic, multi-stage battery charger that uses 'Switched Mode Technology' and 'Battery Care Technology', designed to meet the most advanced requirements of battery manufacturers. This battery charger provides all measured data (charging voltage, current, status) and battery diagnostic data (cells in short circuit, accidental reverse polarity connection, disconnection of the battery) via J1939 CAN communication. This charger is suitable for Open Lead Acid, Sealed Lead Acid, Gel and NiCd–NiMH battery types. It can also be used in power supply mode. The InteliCharger 120 12-24 comes in a rugged casing with a bracket for DIN rail mounting and provides an IP20 protection rating.

InteliCharger 120 12-24 CAN Datasheet

English (12 Jun 2024)

InteliCharger 120 12-24 CAN Global Guide

English (12 Jun 2024)

InteliCharger-Conformity-Declaration

English (29 Jul 2024)

Show resource hub for this product
  • Overview
  • Overview
    • InteliCharger 120 12-24 CAN
    Overview

The InteliCharger 120 12-24 CAN features:

  • Dual voltage operation (12V / 24V)
  • CAN J1939 communication interface
  • Micro-processor control
  • Fully automatic operation
  • Suited for the following battery types: Open Lead Acid, AGM, GEL, Ni-Cd-NiMH
  • Charging type: Boost, Absorption, Float, Recovery
  • Fast Charge (Boost)
  • Protections: Short-circuit, Overload, Over voltage, Over temperature, Reverse battery
  • Diagnosis: Reverse polarity, Short Circuit, Battery disconnection, Wrong battery voltage
  • Signal output terminal indicating fault Battery / Charger (Voltage free contact)
  • Blink code diagnostic and Battery/Charging fault LED indicators
  • Adjustable max. charging current
  • Power Supply mode (can be used as a standalone power supply)
  • Passive cooling
  • Universal AC input ranges
  • DIN rail mounting
