ComAp - InteliVision 12Touch

InteliVision 12Touch

Order code: RD1IV12TBZH

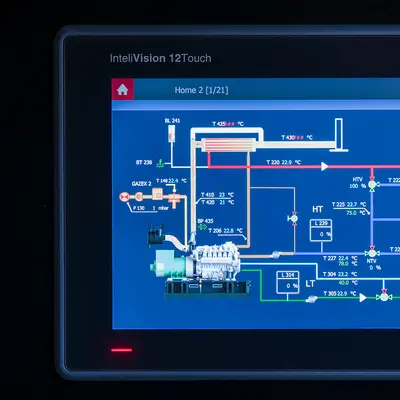

Intuitive, easy-to-use and simple to configure, the InteliVision 12Touch is an industrial operator panel equipped with 12.1” colour, multi-touch screen. Compatible with the majority of ComAp’s controllers, it provides comprehensive visual overview to monitor and control single gen-sets for various applications.

Intuitive navigation
Trends monitoring
Simple installation & configuration
Integrated mounting kit
Comprehensive data overview
Multilanguage support

InteliVision 12Touch Datasheet

English (31 May 2023)

English 31 May 2023

Manuals

4 files

English (25 Jan 2023)

English (26 Apr 2023)

English (25 Jan 2023)

Software

2 files

English (1 Feb 2024)

Certifications

2 files

English (25 Jan 2023)

EU Declaration of Conformity-Displays

English (27 Nov 2023)

Brochures

2 files

English (25 Jan 2023)

Show resource hub for this product

Overview
Related products
Training

Overview
Related products
Training

InteliVision 12Touch is a display unit with an easy-to-use plug&play solution ensuring high visibility of all engine data, monitoring information and trend history in one comprehensive overview. This display unit is easy to work with, simple to configure all controller parameters according to your needs and monitor the trends of specific values.

The InteliVision 12Touch offers:

Plug&play operations with auto-configuration based on specific application
12.1" multi-touch display with a 1280 × 800 pixels screen resolution
Touch-based Graphical User Interface supporting multi-touch gestures
Complete access to all control and monitoring functions
Fast and intuitive navigation
Extended trends monitoring screen
Access and overview of the controller’s history
Help for various adjustable setpoints
Multilanguage support
Robust industrial design
Integrated and easy-to-use mounting system
Broad operating temperature range from -30°C to +70°C
Strong front panel protection with a chemically enhanced front glass
Communication available via standard RS-485, CAN or Ethernet
Compatible with the majority of ComAp’s controllers:

Alternative products

InteliVision 8

InteliVision 8, industrial operator panel equipped with 8” colour screen, is designed to support the monitoring and control of single gen-sets’ operations for various applications. A simple and easy-to-use plug&play solution, it provides comprehensive overview of all engine data, monitoring information and trend history. The InteliVision 8 is intended for the ComAp InteliGen NT, InteSys NT, InteliMains and InteliDrive family of controllers.

InteliVision 5 CAN

InteliVision 5 CAN is an easy-to-use industrial operator panel equipped with 5,7” colour screen for monitoring of single gen-sets for various applications. This intuitive plug&play solution with a CAN bus interface provides comprehensive visual overview of all engine data and monitoring information on a colourful display. The display has a robust and resilient design and can be used without any problems in environments with extreme conditions.

InteliVision 18Touch

Get a comprehensive overview of your complex operations for any application with the InteliVision 18Touch remote display. Easy to install, configure and use, this 18,5“colour touchscreen display unit will support the control and monitoring of sites with multiple controllers and complex installations, such as CHP or Hybrid that have a large number of values that need to be measured. The InteliVision 18Touch comes with embedded PC Scada software enabling users to freely configure their screen with different types of items such as meters, bar graphs, numeric values, control buttons, pictures, etc.

InteliVision 5

InteliVision 5 is an easy-to-use industrial operator panel with a colour screen for monitoring of single gen-set for various applications. This robust and intuitive plug&play solution provides comprehensive visual overview of all engine data, monitoring information and trend history.

Accessories

InteliGen GSC

InteliGen GSC is a controller for single or multiple diesel gen-sets operating in stand-by or parallel mode. Intended primarily for switchgear applications, this product controls, monitors and protects critical infrastructure installations such as datacentres, hospitals or banks. The InteliGen GSC is an earlier generation of our advanced controller InteliGen 1000.

InteliGen NTC BaseBox

InteliGen NTC BaseBox is a controller with a broad range of communication capabilities for single or multiple diesel gen-sets operating in stand-by or parallel mode. Intended primarily for switchgear applications, this controller will ensure secure on-site and remote monitoring of your critical infrastructure installations such as datacentres, hospitals or banks. The InteliGen NTC BaseBox is one of the earlier versions of our advanced controller InteliGen 1000.

InteliSys NTC Hybrid

InteliSys NTC Hybrid is a controller for hybrid microgrid applications, supporting the combination of renewable energy sources with gen-sets. The controller can be used for both on-grid and off-grid applications to help optimise the use of renewable energy and reduce your carbon footprint.

InteliMains NTC BaseBox

InteliMains NTC BaseBox is a Mains/Utility/Tie-breaker protection and supervision controller with extensive communication capabilities. Acting as a Mains protection relay, the InteliMains NTC BaseBox synchronises sets of gen-sets to the Mains/Utility source. This product is an earlier generation of the InteliMains 1010 controller and it is intended for switchgear applications and complex, critical infrastructure installations, such as datacentres, hospitals or banks.

InteliDrive Mobile

Electronic controller for off-road vehicles and machinery.

InteliGen GSC-C

InteliGen GSC-C is a controller with broad communication capabilities for single or multiple diesel gen-sets operating in stand-by or parallel mode. Intended primarily for switchgear applications, this product controls, monitors and protects critical infrastructure installations such as datacentres, hospitals or banks. The InteliGen GSC-C is an earlier generation of our advanced controller InteliGen 1000.

InteliSys Gas

InteliSys Gas is designed to control, monitor and protect the operation of any type of gas engine and/or CHP (combined heat and power) unit. The control unit has broad communication capabilities, numerous specialised predefined functions for gas/CHP/generators; and it offers complete preprogramed control of the generating set, helping you save time with the configuration, commissioning and management of your project.

InteliSys GSC-C

The InteliSys GSC-C will help control your single or multiple gen-sets operating in stand-by or parallel mode. The controller has broad communication capabilities and enables secure remote control and monitoring. This product is intended for various installations, such as micro-CHP, complex datacentres, hospitals and banks.

InteliGen NT BaseBox

InteliGen NT BaseBox is a controller for single or multiple diesel gen-sets operating in stand-by or parallel mode. Intended primarily for switchgear applications, this controller will ensure secure remote monitoring of your critical infrastructure installations such as datacentres, hospitals or banks. The InteliGen NT BaseBox is an earlier generation controller of our advanced InteliGen 1000.

InteliSys NTC BaseBox

InteliSys NTC BaseBox is a controller with a broad range of communication and PLC capabilities for single or multiple gen-sets operating in stand-by or parallel mode. Intended primarily for CHP and switchgear applications, it will help you with secure on-site and remote monitoring of various installations such micro CHP, datacentres, hospitals or banks.
